ECU MASTER PMU-24

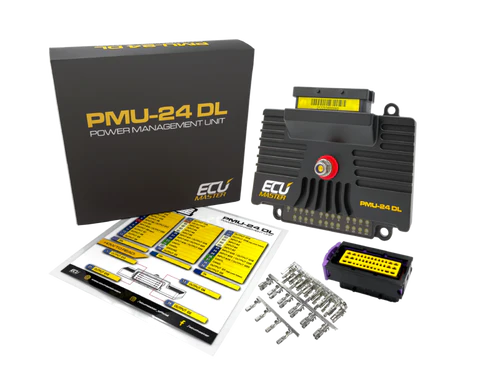

All PMU are supplied with connectors and terminals
NOTE: compatible USB-can device is needed for setting up and programming
PMU-24 DL is a new and enhanced Power Management Unit featuring all the benefits of the PMU-16, now with 24 high-side outputs and internal data logging memory as a standard. All output states, voltage, and current information are transmitted via CAN bus to a dash display to inform the driver of potential problems. All logged data can be downloaded from the device for later analysis.
170 Amps total continuous current.

Operating voltage: 6-22V (immunity to transients according to ISO 7637)

Temperature range: AECQ-100 GRADE 1, -40 to +125°C.

10x 25 Amps high-side power outputs (all PWM capable).

6x 15 Amps high-side power outputs.

8x 7 Amps high-side power outputs.

Up to 16 analog inputs.

24x tricolor LED for each power output state.

2x CAN 2.0 A/B.

256 MB data logger memory.

Up to 500 Hz logging frequency.

Real-time clock for data stamping.

3D accelerometer/gyroscope.

Built-in “inertia switch” in case of an accident.

Easy access to CAN-bus data (imports and exports).

Internal data processing using logical functions, numbers,
timers, and tables.

Custom PID controllers.

Fully customizable ”logic” for each output.

Flexible and intuitive client software.

Dimensions: 131x112x33mm, weight 385g
